Battery Safety Test Equipment
Short circuit testers, thermal abuse chambers, crush and needle puncture machines — engineered to verify batteries under the world's toughest safety standards.
Safety Testing
Test to the Standard. Survive the Unexpected.
The VT-SAFE series recreates the worst-case conditions a battery can face — external short circuit, thermal runaway, mechanical crush and nail penetration — inside a containment chamber engineered to protect operators and equipment.
- ✓ Short circuit testers: up to 10,000 A with < 5 mΩ circuit resistance
- ✓ Thermal abuse chambers: -40 °C to +200 °C with rapid ramp control
- ✓ Crush testers: up to 20 T force with real-time force/displacement curves
- ✓ Needle puncture machines: precision speed and depth control
- ✓ Explosion-proof, vented enclosures with fire suppression options
Models & Specifications
VT-SAFE Series Overview
| Model | Test Type | Key Specification | Standards | Test Chamber Size |
|---|---|---|---|---|
| VT-SC-10000 | External Short Circuit | 10,000 A / < 5 mΩ / 1 ms closing | UL 1642, IEC 62133, UN 38.3 | 600 × 600 × 600 mm |
| VT-TA-300 | Thermal Abuse | -40 °C to +200 °C, ±0.5 °C, 3 °C/min | IEC 62133, GB 31241 | 800 × 800 × 800 mm |
| VT-CR-20T | Crush / Squeeze | 20 T force, 0.1–50 mm/min speed | UN 38.3, GB 31241 | 1000 × 1000 × 1000 mm |
| VT-NP-10T | Needle Puncture | 10 T thrust, 1–80 mm/s, Ø3–8 mm needles | UN 38.3, GB 31241 | 800 × 800 × 800 mm |
Custom chamber sizes, gas analysis interfaces and video monitoring available on request.
Key Features
Containment, Control and Complete Data
Explosion-Proof
Reinforced steel enclosures with pressure relief vents and blast doors rated for cell and small pack events.
Fire Suppression
Optional CO2 / water mist suppression with thermal sensors for autonomous safety response.
Gas & Smoke Analysis
Optional sensors for CO, H2, VOC and pressure to characterise venting and thermal runaway.
Video Monitoring
High-speed cameras with frame markers synchronised to force, current and temperature data.
Precision Control
Closed-loop force, temperature and current control with certified transducer calibration.
Report Generation
One-click test reports formatted for UL, IEC, GB and UN 38.3 submission.
Operator Safety
Interlocked doors, remote start, emergency stop and e-stop chain per international machine safety practice.
Modular Build
Combine short circuit, thermal and mechanical testers into one flexible safety laboratory.
Standards & Applications
Compliant with Global Battery Safety Standards
Our battery safety test chambers are built to the test items of the world's core lithium battery safety standards.
- ✓ UL 1642 / UL 2054 — short circuit, crush, impact, thermal
- ✓ IEC 62133 / IEC 62619 — short circuit, thermal abuse, crush
- ✓ GB 31241 — Chinese lithium battery safety standard test items
- ✓ UN 38.3 — transport safety tests including T.3 external short circuit
- ✓ ISO 12405 / GB 38031 — EV battery system safety testing
Plan Your Safety Laboratory
Tell us which standards you need to certify against — we'll configure the right equipment set.
Request a Quote →Free application consultation · 24-hour response
Product Gallery
Environmental & Climate Test Equipment

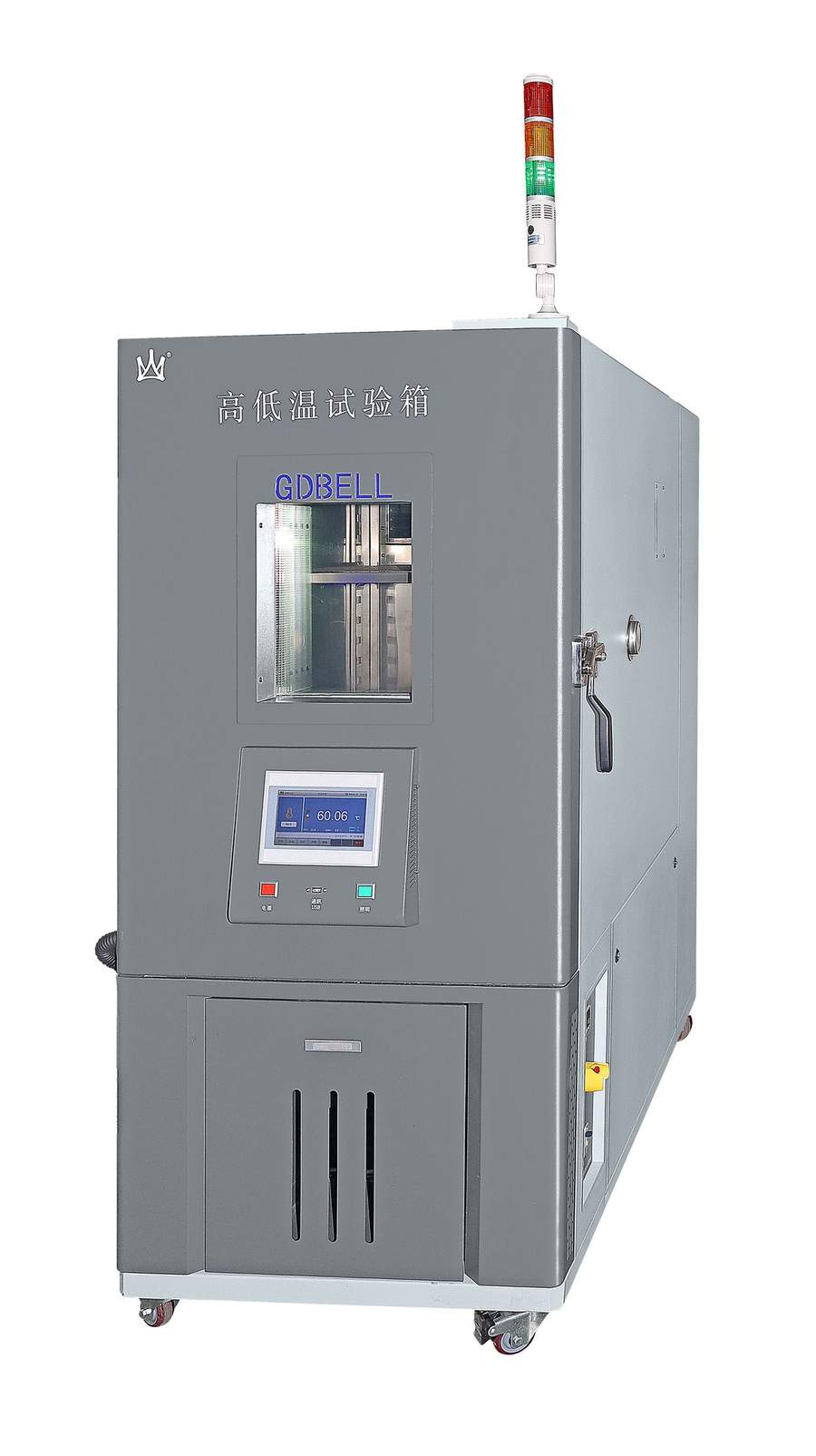

Standard Environmental Test Chamber
Model: VT-ENV-408
Temperature: -40°C to +150°C, Volume: 408L. Universal testing for...

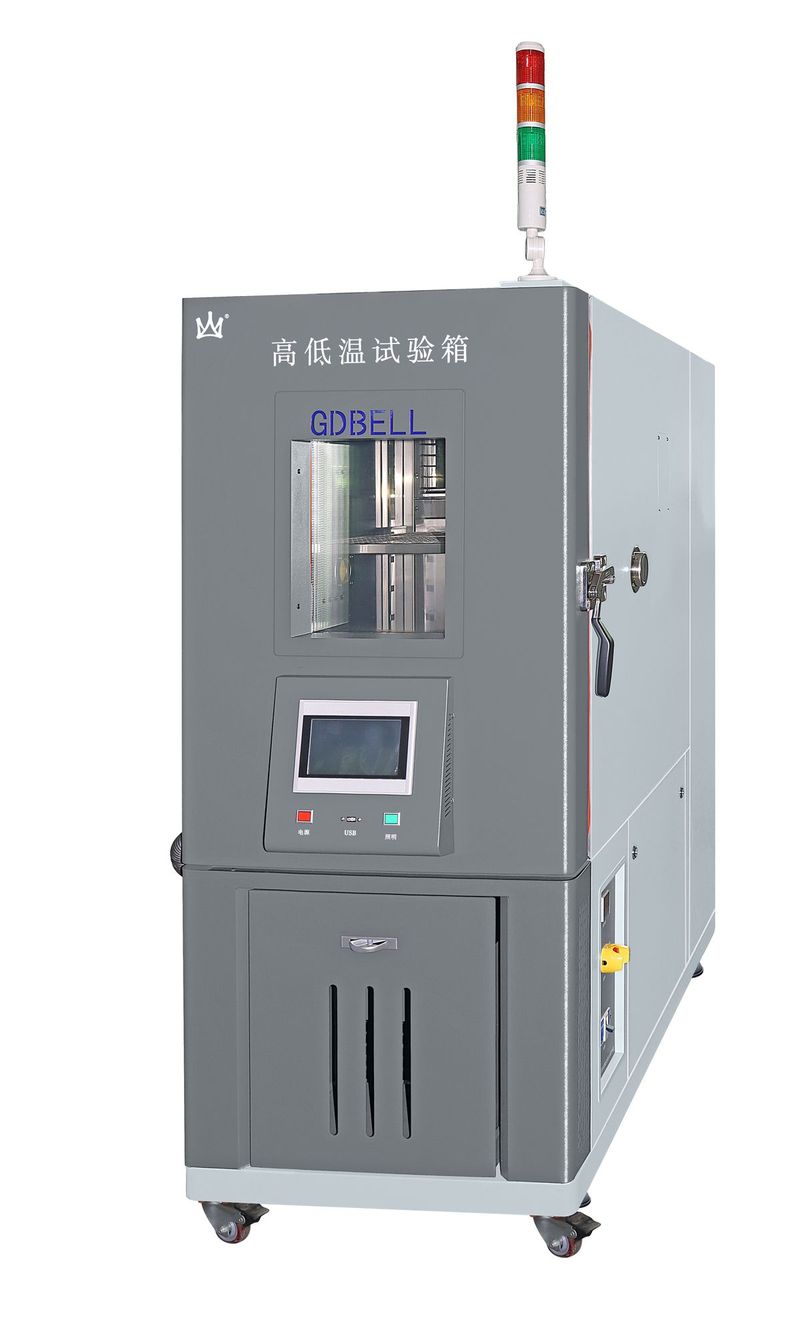

Medium Environmental Test Chamber
Model: VT-ENV-225
Temperature: -40°C to +150°C, Volume: 225L. Cell-level and small ...

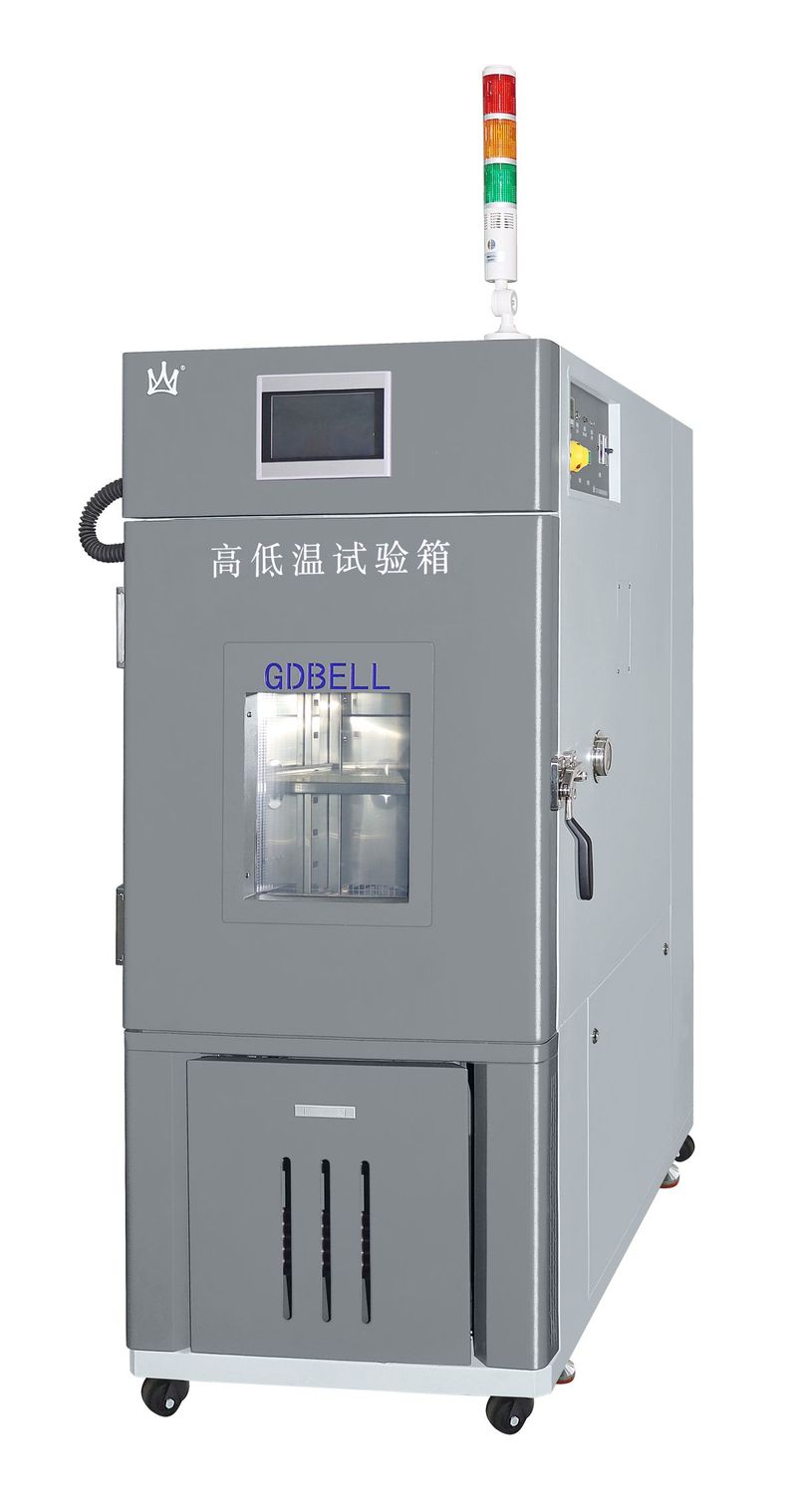

Compact Environmental Test Chamber
Model: VT-ENV-150
Temperature: -40°C to +150°C, Volume: 150L. R&D lab and QC applic...
Benchtop Environmental Chamber
Model: VT-ENV-80
Temperature: -40°C to +150°C, Volume: 80L. Single cell testing co...

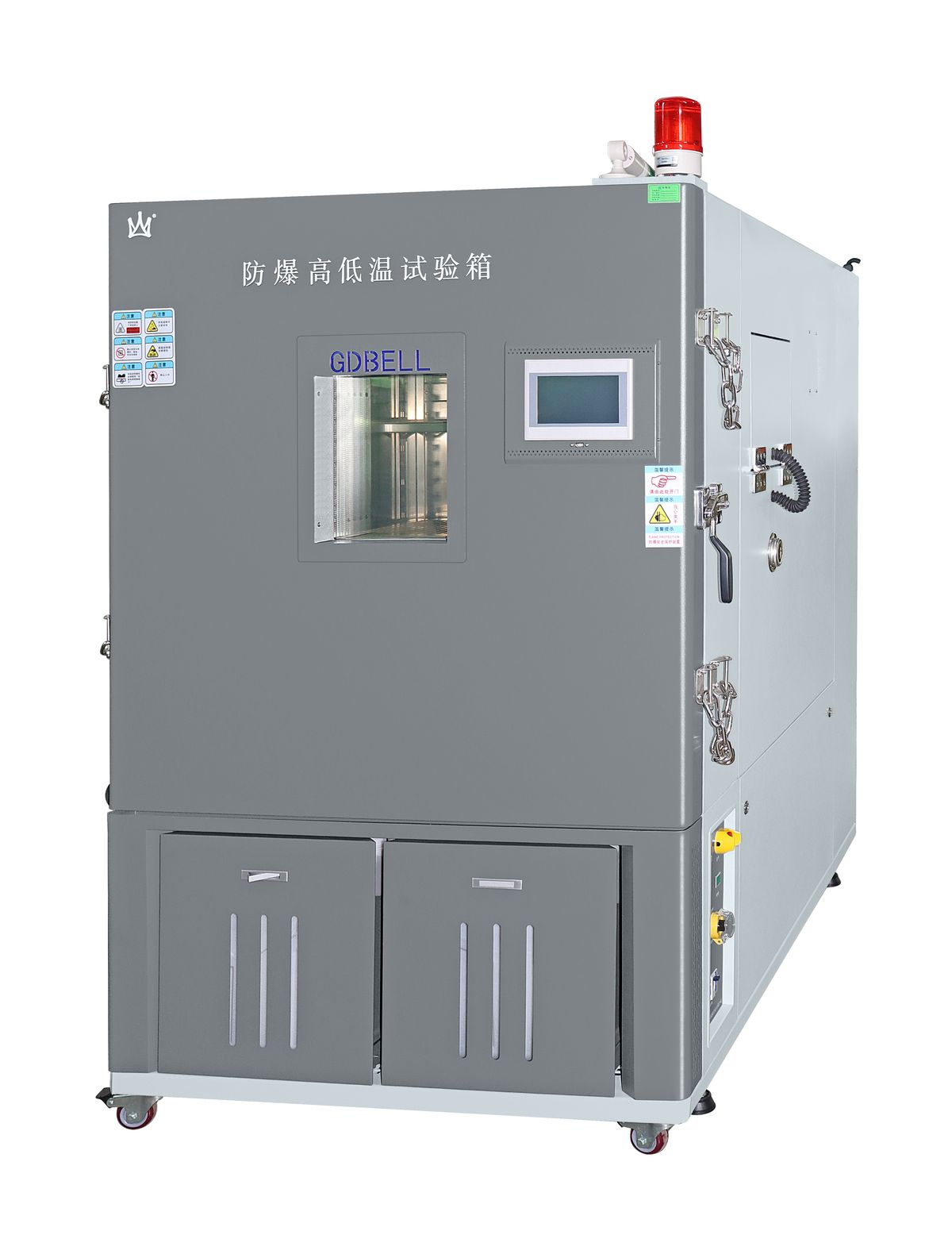

Explosion-proof Environmental Chamber
Model: VT-ENV-1000-EX
1000L explosion-proof design. Safe testing for unsafe cells. -40°...

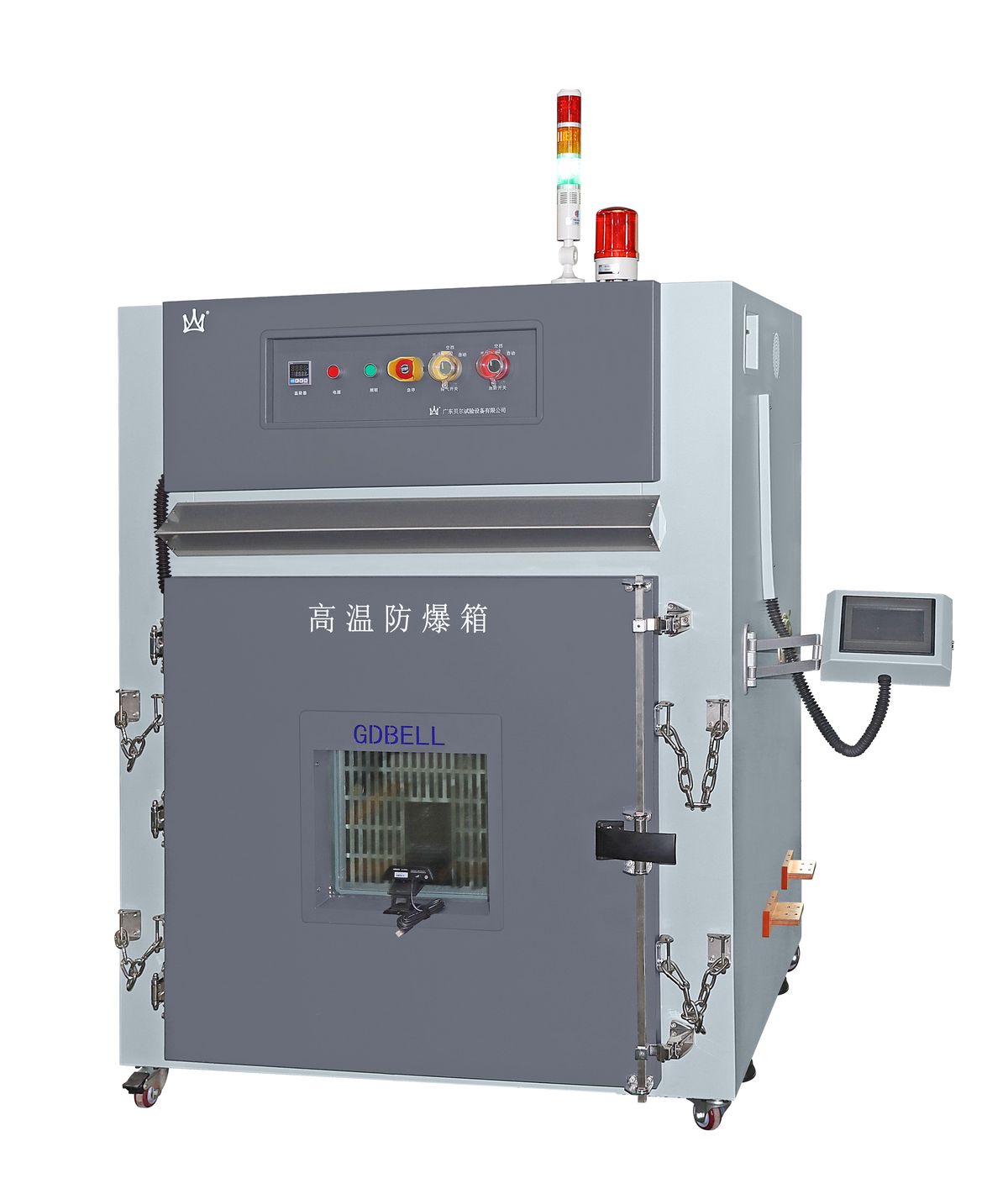

Explosion-proof High Temperature Oven
Model: VT-ENV-HP-EX
High temperature aging up to 200°C with explosion-proof enclosure...
Dual Chamber Environmental System
Model: VT-ENV-DUAL
Two independent chambers for parallel high/low temperature testin...

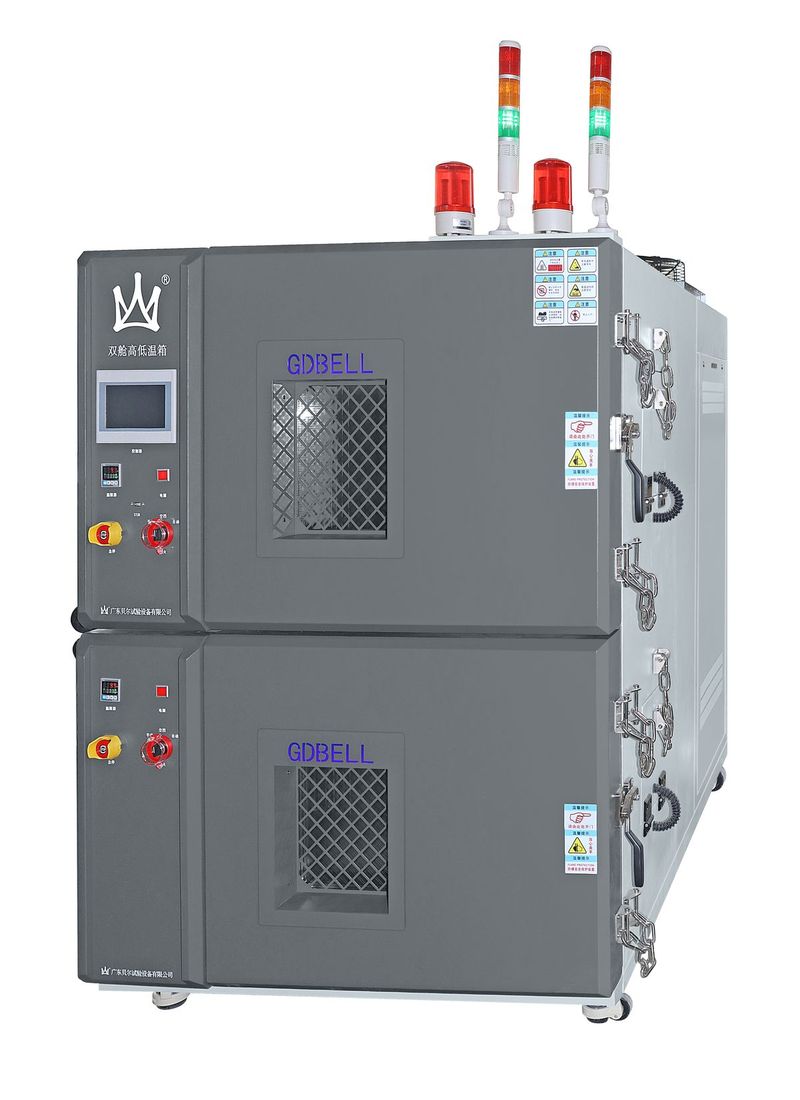

Dual Tier Environmental Chamber
Model: VT-ENV-2TIER
Space-efficient two-tier design for multi-cell environmental test...

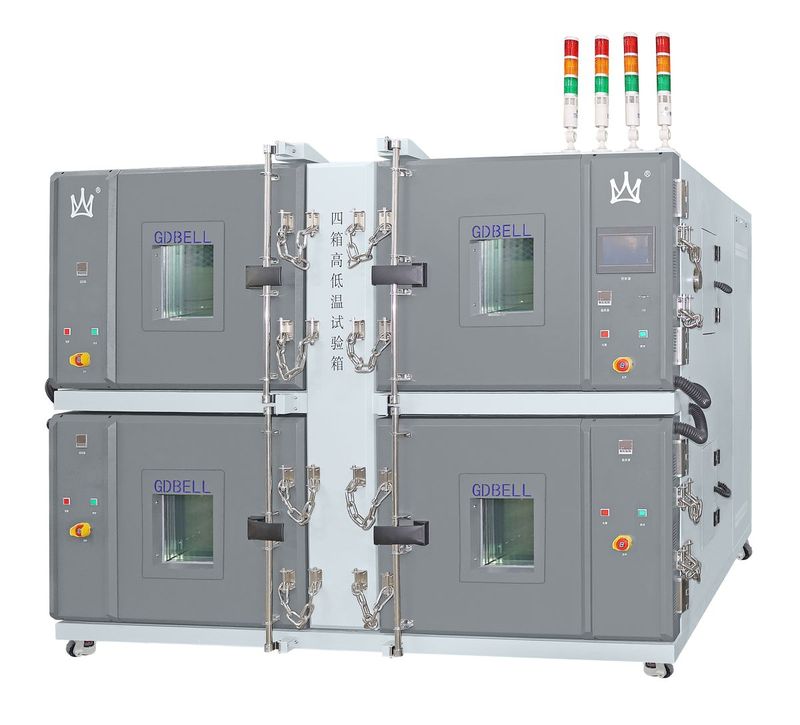

Multi-Cell Environmental Station
Model: VT-ENV-4CELL
Simultaneous 4-cell environmental testing with independent contro...
Walk-in Environmental Test Chamber
Model: VT-ENV-WALK
Large walk-in chamber for complete EV battery systems and vehicle...

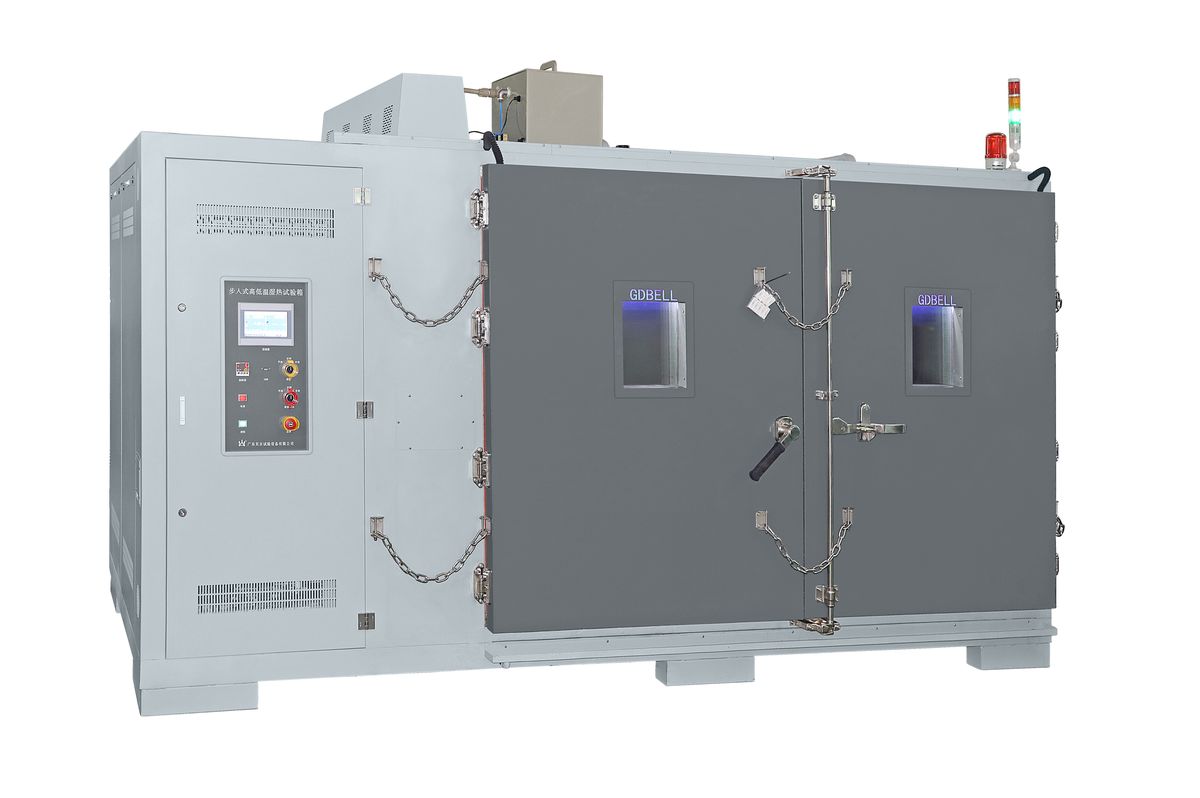

Walk-in Environmental Humidity Chamber
Model: VT-ENV-WALK-H
Walk-in chamber with combined temperature and humidity control.
Large Climate Test Chamber
Model: VT-CLIM-1000
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 1000L.

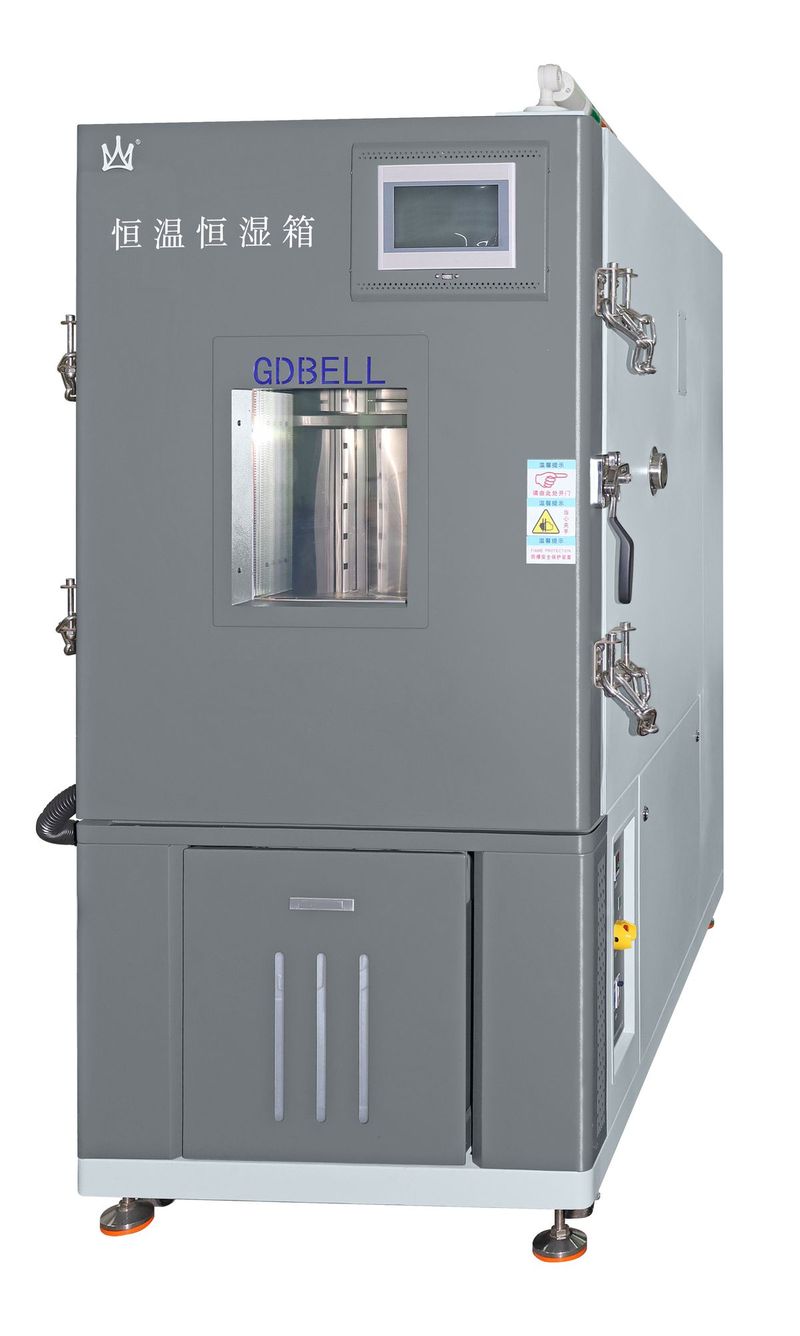

Standard Climate Test Chamber
Model: VT-CLIM-408
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 408L.

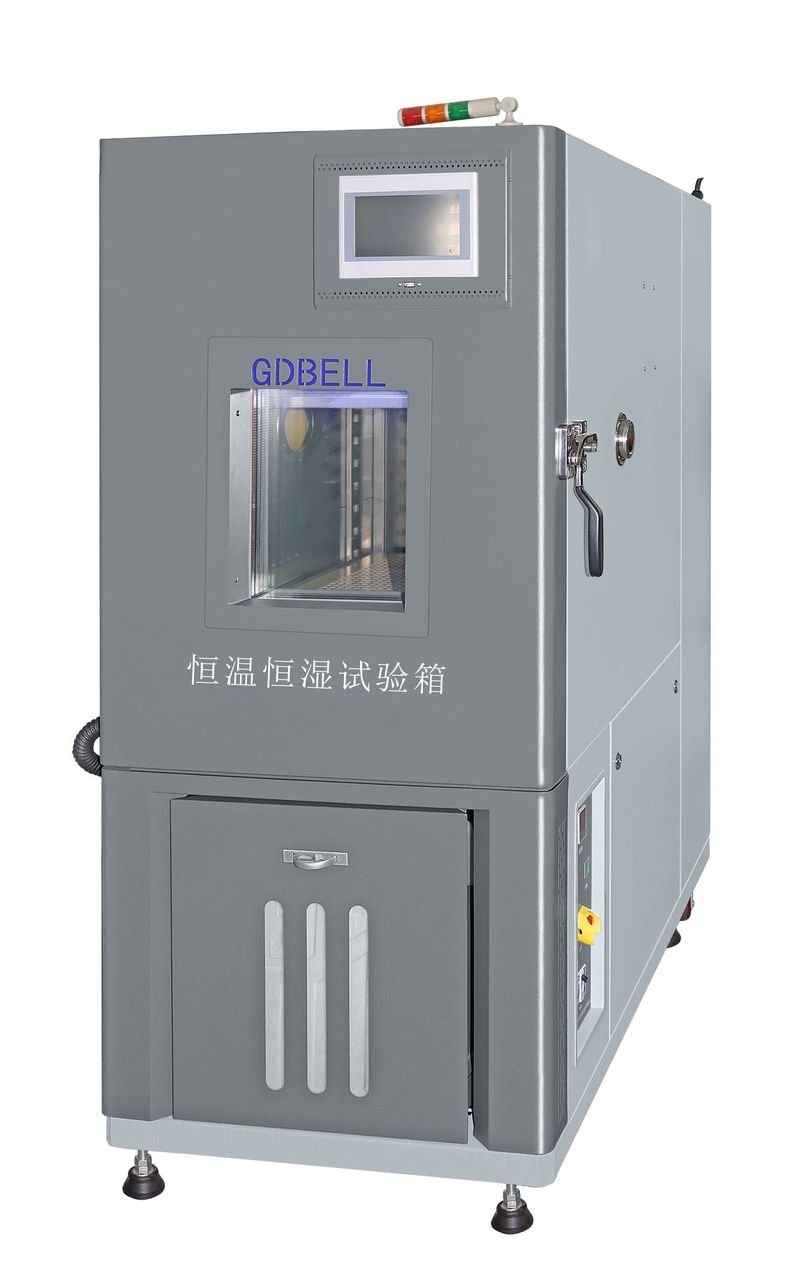

Medium Climate Test Chamber
Model: VT-CLIM-225
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 225L.

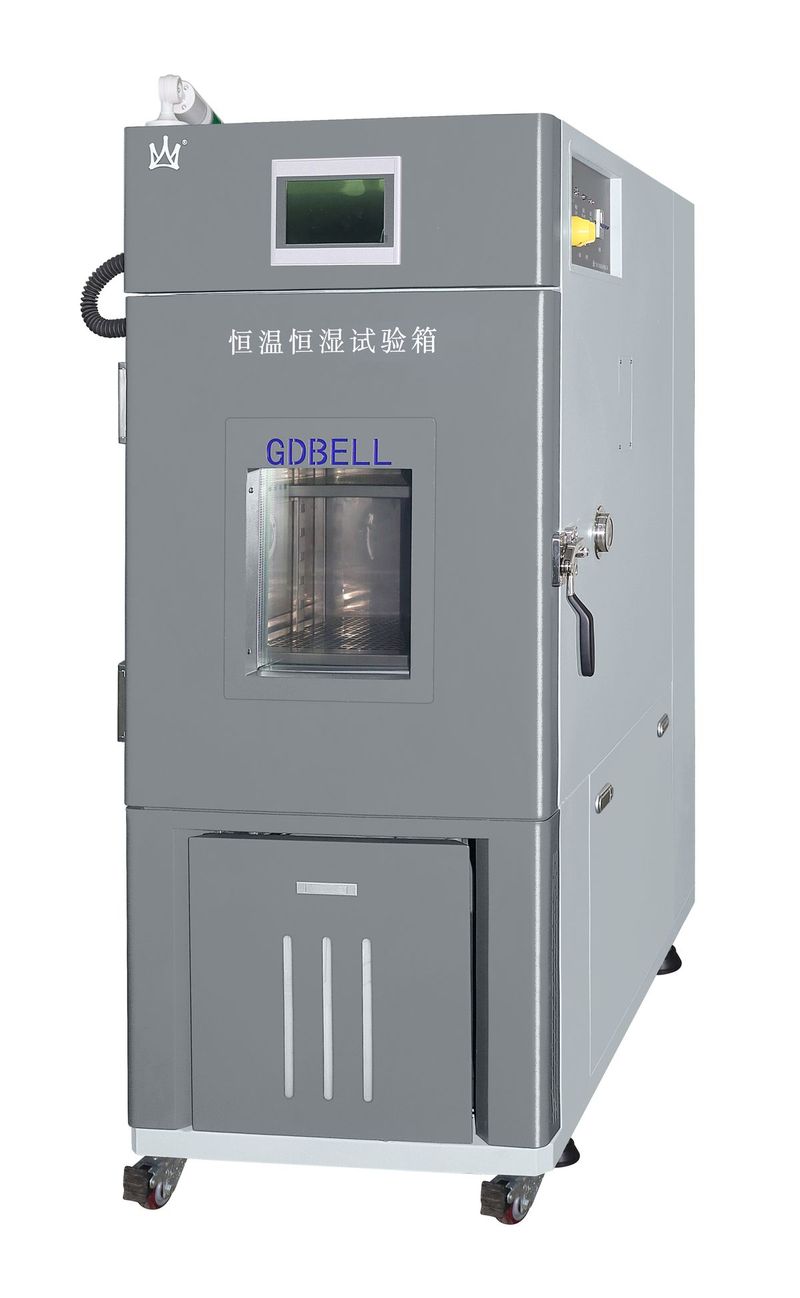

Compact Climate Test Chamber
Model: VT-CLIM-150
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 150L.

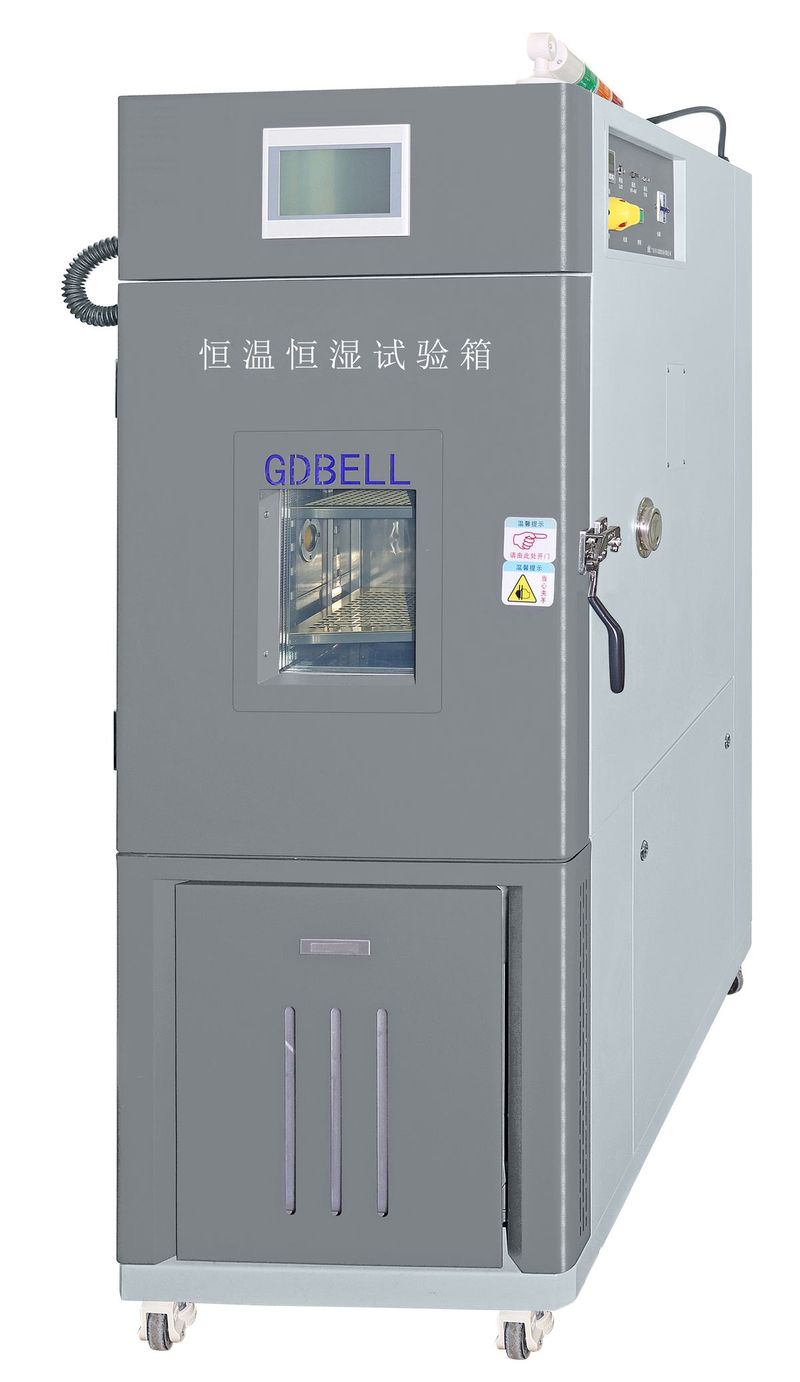

Benchtop Climate Chamber
Model: VT-CLIM-80
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 80L.

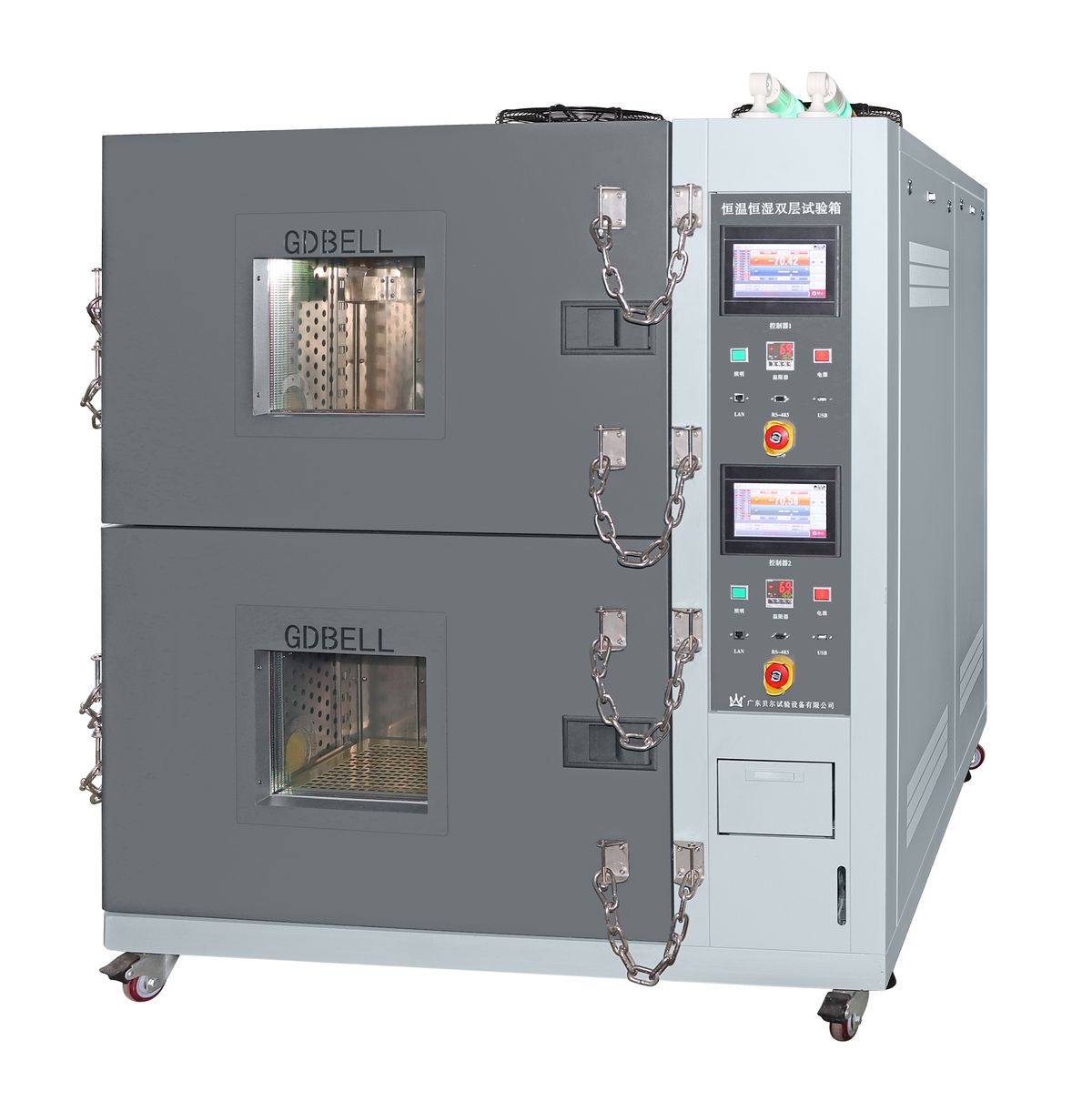

Dual Chamber Climate System
Model: VT-CLIM-DUAL
Two independent climate chambers for simultaneous testing.
FAQ
Frequently Asked Questions
What safety tests are required for lithium batteries?
The core safety tests mandated by UL 1642, IEC 62133, GB 31241 and UN 38.3 include: external short circuit, thermal abuse (heating to 130–150°C), crush, nail penetration/drop, overcharge, forced discharge, low pressure (altitude) and mechanical vibration. VoltTest safety test chambers cover all these test items.
What standards does the safety test equipment comply with?
VoltTest safety test chambers are designed to comply with UL 1642, IEC 62133-2, GB 31241, GB/T 31485, UN 38.3 and SAE J246. Each chamber's test parameters (force, temperature, current, duration) can be configured to meet the specific clauses of the target standard.
Can one chamber perform all abuse tests?
No single chamber performs all tests, as different tests require fundamentally different mechanisms (crush press, nail penetration, thermal oven, short circuit switch). VoltTest offers individual test stations for each abuse test type, and complete safety test laboratory packages that include all required equipment.
What temperature range does the thermal abuse chamber reach?
VoltTest thermal abuse chambers reach up to 200°C for IEC 62133 and GB 31241 thermal abuse tests (typically 130°C ± 2°C for 30 minutes). The chambers include precise temperature control, fume extraction and blast-rated observation windows for operator safety.
How is the short circuit test controlled?
The VoltTest short circuit tester applies a low-resistance connection (<5 mΩ) across the cell terminals with configurable current limiting up to 10 kA. It includes a contactor, shunt resistor for current measurement, thermal fuse protection and a blast enclosure with fume extraction for safe operation.
