Large Capacity Environmental Test Chamber
Model: VT-ENV-1000
Temperature: -70°C to +150°C, Volume: 1000L. For EV battery packs...
Battery Safety Test Equipment
Short circuit testers, thermal abuse chambers, crush and needle puncture machines — engineered to verify batteries under the world's toughest safety standards.
Large Capacity Testing
Power. Precision. Scalability.
The Large Capacity Battery Test Chamber series covers high-power charge/discharge cyclers and multi-channel capacity testers engineered for energy storage systems, electric vehicles and industrial battery production lines.
- ✓ Charge/Discharge Cyclers: 0–5 V / 0–60 V, 1 mA–300 A, ±0.05% FS
- ✓ Capacity Testers: CC/CP/CR modes, up to 512 channels, coulomb counting
- ✓ High Power: up to 1000 V / 600 A for module and pack testing
- ✓ Energy Recovery: ≥90% regenerative feedback for cost-effective operation
- ✓ MES Integration: automated grading, sorting and data traceability
Models & Specifications
VT-SAFE Series Overview
| Model | Test Type | Key Specification | Standards | Test Chamber Size |
|---|---|---|---|---|
| VT-SC-10000 | External Short Circuit | 10,000 A / < 5 mΩ / 1 ms closing | UL 1642, IEC 62133, UN 38.3 | 600 × 600 × 600 mm |
| VT-TA-300 | Thermal Abuse | -40 °C to +200 °C, ±0.5 °C, 3 °C/min | IEC 62133, GB 31241 | 800 × 800 × 800 mm |
| VT-CR-20T | Crush / Squeeze | 20 T force, 0.1–50 mm/min speed | UN 38.3, GB 31241 | 1000 × 1000 × 1000 mm |
| VT-NP-10T | Needle Puncture | 10 T thrust, 1–80 mm/s, Ø3–8 mm needles | UN 38.3, GB 31241 | 800 × 800 × 800 mm |
Custom chamber sizes, gas analysis interfaces and video monitoring available on request.
Key Features
Containment, Control and Complete Data
Explosion-Proof
Reinforced steel enclosures with pressure relief vents and blast doors rated for cell and small pack events.
Fire Suppression
Optional CO2 / water mist suppression with thermal sensors for autonomous safety response.
Gas & Smoke Analysis
Optional sensors for CO, H2, VOC and pressure to characterise venting and thermal runaway.
Video Monitoring
High-speed cameras with frame markers synchronised to force, current and temperature data.
Precision Control
Closed-loop force, temperature and current control with certified transducer calibration.
Report Generation
One-click test reports formatted for UL, IEC, GB and UN 38.3 submission.
Operator Safety
Interlocked doors, remote start, emergency stop and e-stop chain per international machine safety practice.
Modular Build
Combine short circuit, thermal and mechanical testers into one flexible safety laboratory.
Standards & Applications
Compliant with Global Battery Safety Standards
Our battery safety test chambers are built to the test items of the world's core lithium battery safety standards.
- ✓ UL 1642 / UL 2054 — short circuit, crush, impact, thermal
- ✓ IEC 62133 / IEC 62619 — short circuit, thermal abuse, crush
- ✓ GB 31241 — Chinese lithium battery safety standard test items
- ✓ UN 38.3 — transport safety tests including T.3 external short circuit
- ✓ ISO 12405 / GB 38031 — EV battery system safety testing
Plan Your Safety Laboratory
Tell us which standards you need to certify against — we'll configure the right equipment set.
Request a Quote →Free application consultation · 24-hour response
Product Gallery
Large Capacity Battery Test Chambers
Large Climate Test Chamber
Model: VT-CLIM-1000
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 1000L.
Large Rapid Temperature Change Chamber
Model: VT-RTC-1000
1000L rapid thermal cycling for accelerated life testing.
Large Temperature Cycling Chamber
Model: VT-TC-1000
1000L for extended temperature cycling tests.
Walk-in Environmental Test Chamber
Model: VT-ENV-WALK
Large walk-in chamber for complete EV battery systems and vehicle...
Dual Chamber Environmental System
Model: VT-ENV-DUAL
Two independent chambers for parallel high/low temperature testin...
Medium Climate Test Chamber
Model: VT-CLIM-408
Temperature: -40~150°C, Humidity: 20~98%RH, Volume: 408L. For module-level testing.

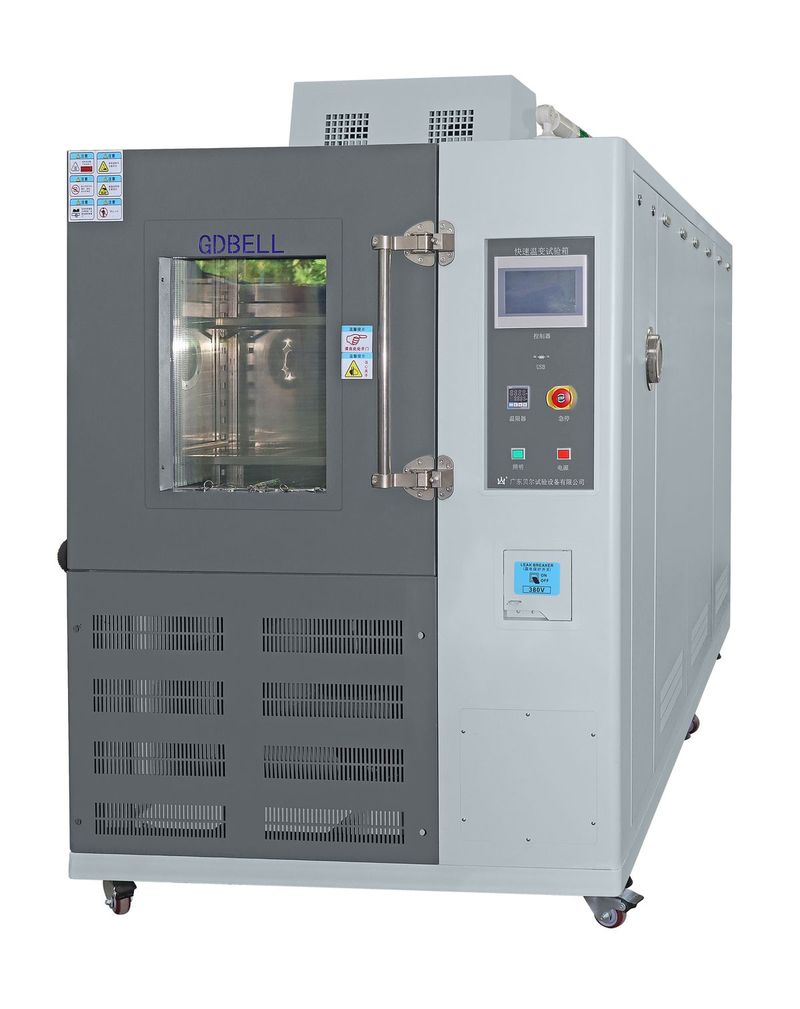

Rapid Temperature Change Chamber
Model: VT-RTC-225
225L rapid thermal cycling chamber for accelerated stress screening of battery modules.

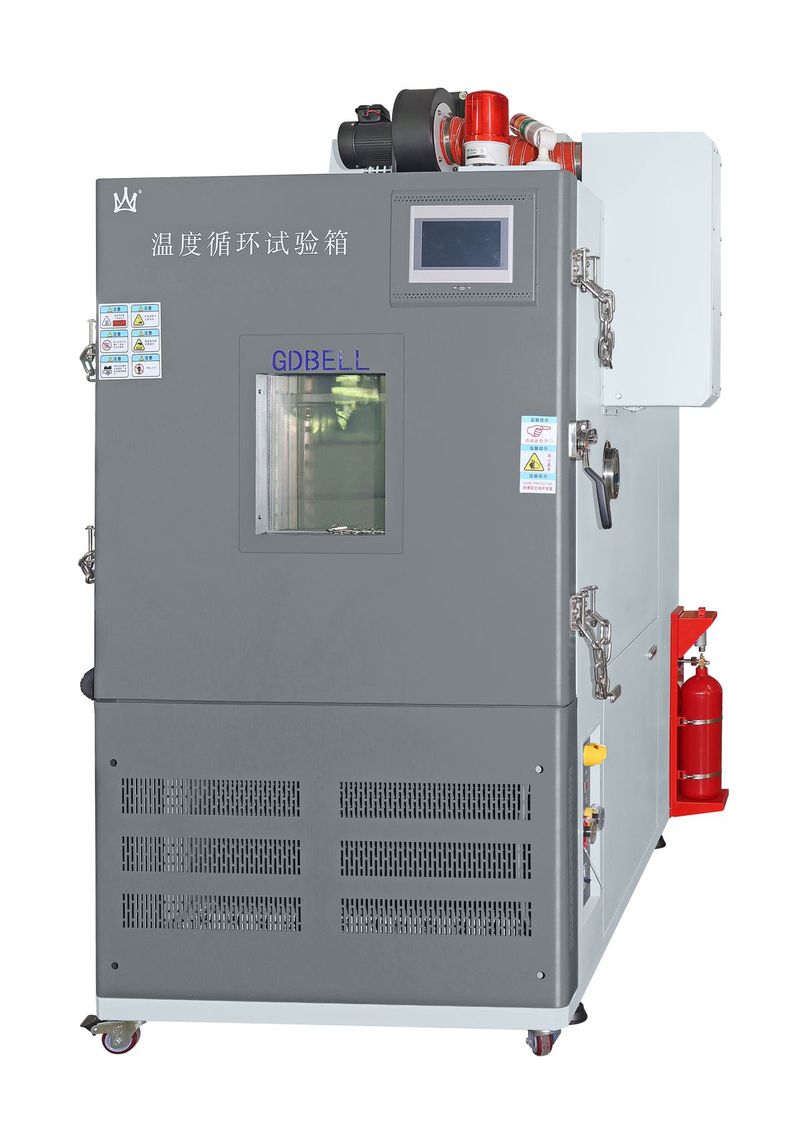

Temperature Cycling Chamber 408L
Model: VT-TC-408
Extended temperature cycling for cycle life validation of medium-format cells and modules.
Walk-in Humidity Test Chamber
Model: VT-ENV-WALK-H
Large walk-in chamber with humidity control for full EV pack environmental testing.

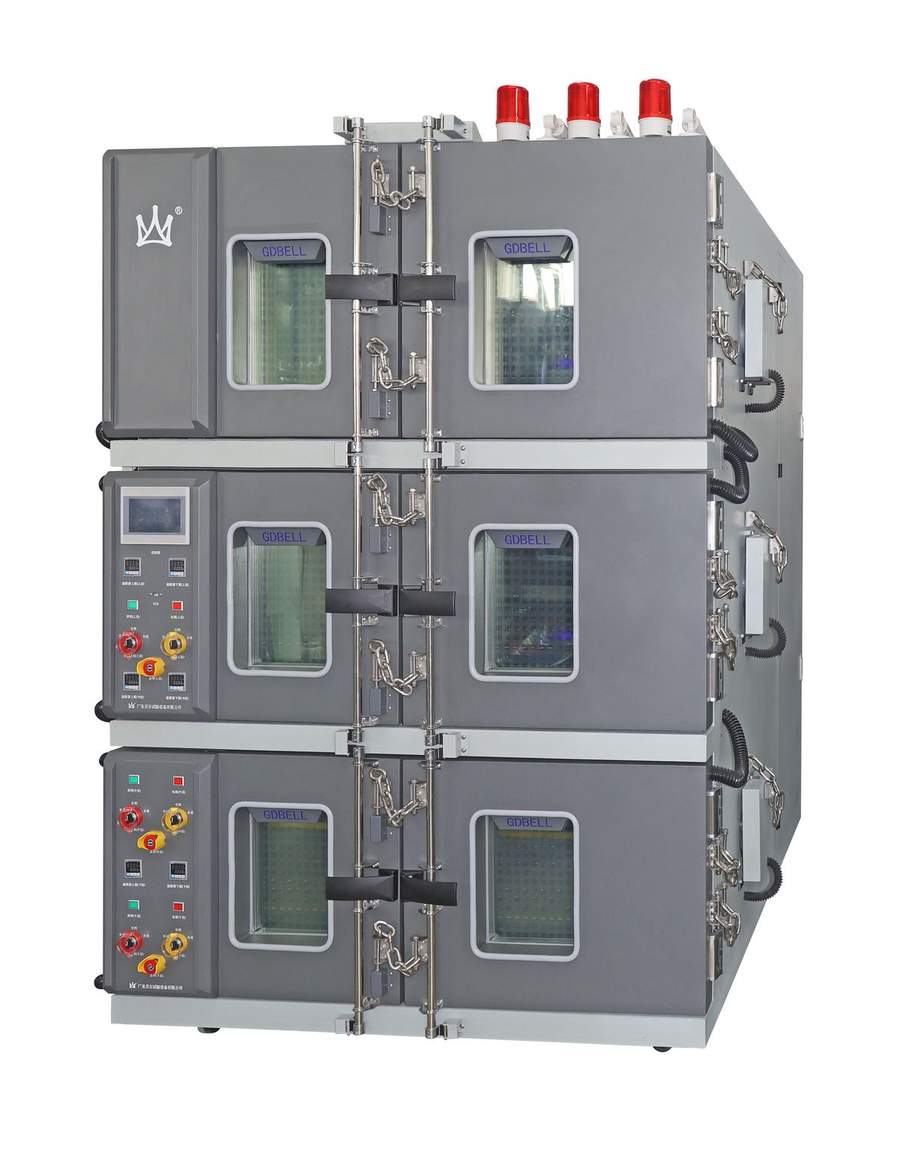

3-Chamber Environmental Test System
Model: VT-3CHAM-ENV
Three-zone independent temperature control for parallel high/medium/low temp testing.
Explosion-Proof Environmental Chamber 1000L
Model: VT-ENV-EXP-1000
Blast-rated chamber for safe thermal runaway testing of large capacity cells and packs.
FAQ
Frequently Asked Questions
What safety tests are required for lithium batteries?
The core safety tests mandated by UL 1642, IEC 62133, GB 31241 and UN 38.3 include: external short circuit, thermal abuse (heating to 130–150°C), crush, nail penetration/drop, overcharge, forced discharge, low pressure (altitude) and mechanical vibration. VoltTest safety test chambers cover all these test items.
What standards does the safety test equipment comply with?
VoltTest safety test chambers are designed to comply with UL 1642, IEC 62133-2, GB 31241, GB/T 31485, UN 38.3 and SAE J246. Each chamber's test parameters (force, temperature, current, duration) can be configured to meet the specific clauses of the target standard.
Can one chamber perform all abuse tests?
No single chamber performs all tests, as different tests require fundamentally different mechanisms (crush press, nail penetration, thermal oven, short circuit switch). VoltTest offers individual test stations for each abuse test type, and complete safety test laboratory packages that include all required equipment.
What temperature range does the thermal abuse chamber reach?
VoltTest thermal abuse chambers reach up to 200°C for IEC 62133 and GB 31241 thermal abuse tests (typically 130°C ± 2°C for 30 minutes). The chambers include precise temperature control, fume extraction and blast-rated observation windows for operator safety.
How is the short circuit test controlled?
The VoltTest short circuit tester applies a low-resistance connection (<5 mΩ) across the cell terminals with configurable current limiting up to 10 kA. It includes a contactor, shunt resistor for current measurement, thermal fuse protection and a blast enclosure with fume extraction for safe operation.
Related Products
Extend Your Safety & Reliability Testing
Electrical Safety Testers
Hi-pot and insulation verification for finished cells and packs.
View electrical safety tester specs →
Charge/Discharge Test Systems
Pre-condition batteries to the required state of charge before abuse testing.
View battery cycler specifications →
Module/Pack Test Systems
EOL and performance testing to complement your safety programme.
View module/pack test system specs →Building a Battery Safety Test Laboratory?
Get a complete lab quotation — short circuit, thermal, crush and puncture — with installation and operator training included.
